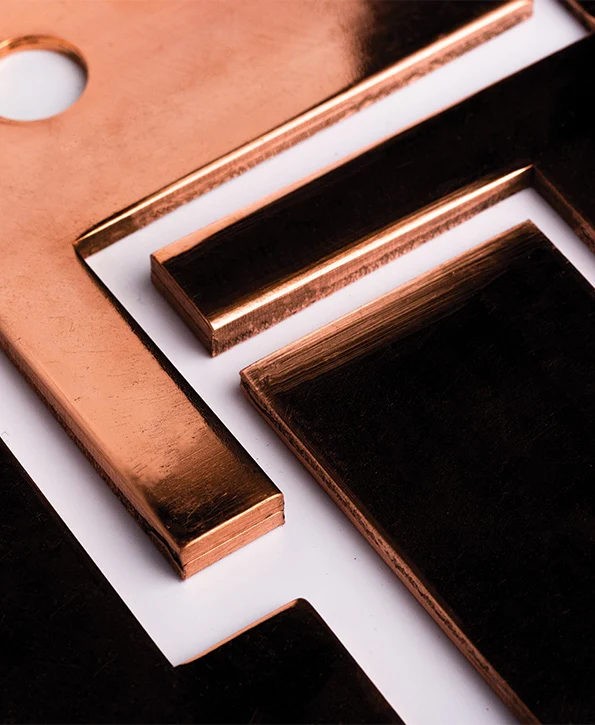

segments01

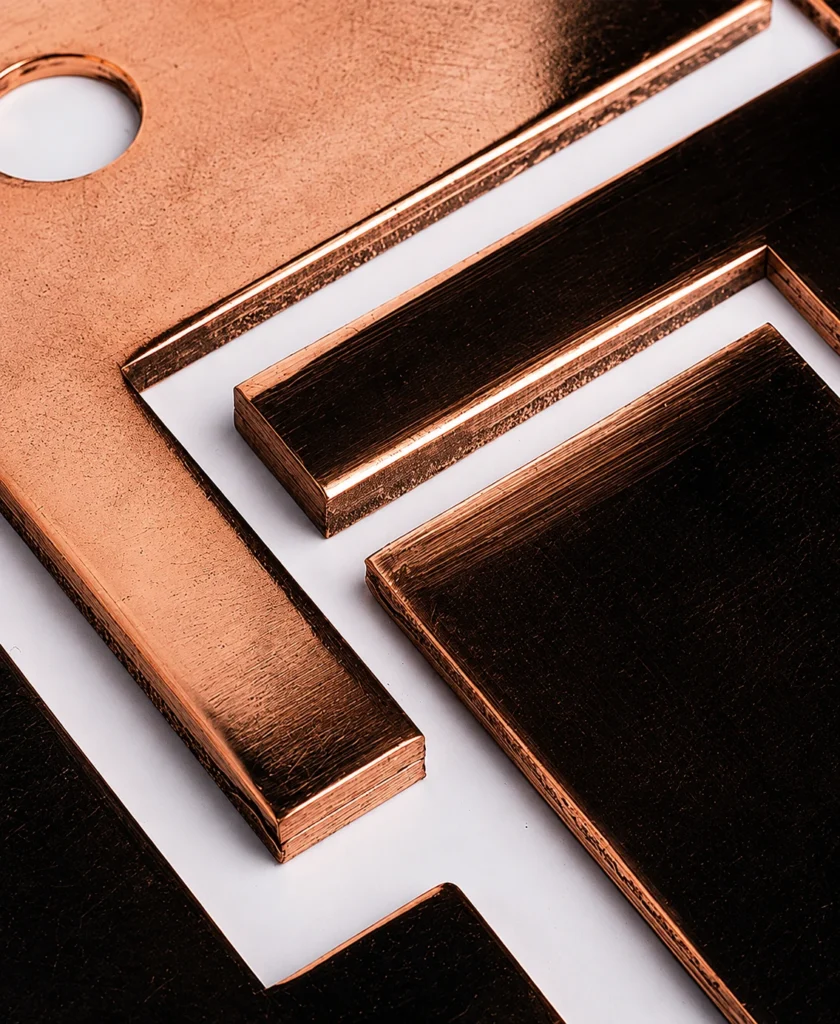

commutator_segments

Commutator Segments

The Commutator Segments we supply are in ready to use condition and complete with Riser Slitting as per customers drawing. Our in-house die making facility allows us to supply small quantities within a short delivery period.

Technical Specifications

Touch pitch HC Copper - Cu - ETP

EU Designation : CW004A

UNS Number : C11000

Composition

  • Nominal Silver (%) : -
  • Oxygen Max ppm : 400

Touch pitch HC Copper - Cu - ETP

EU Designation : CW004A

UNS Number : C11000

Composition

  • Nominal Silver (%) :
  • Oxygen Max ppm : 400

Copper - 0.04% Silver - CuAg 0.04

EU Designation : CW011A

UNS Number : C11300

Composition

  • Nominal Silver (%) : 0.04
  • Oxygen Max ppm : 400

Copper - 0.07% Silver - CuAg 0.07

EU Designation : CW012A

UNS Number : C11500

Composition

  • Nominal Silver (%) : 0.07
  • Oxygen Max ppm : 400

Copper - 0.10% Silver - CuAg 0.10

EU Designation : CW013A

UNS Number : C11600

Composition

  • Nominal Silver (%) : 0.10
  • Oxygen Max ppm : 400

Copper - 0.17% Silver

EU Designation : -

UNS Number : -

Composition

  • Nominal Silver (%) : 0.17
  • Oxygen Max ppm : 400

OF Copper - 0.10% Silver - CuAg 0.10 (OF)

EU Designation : CW019A

UNS Number : C10700

Composition

  • Nominal Silver (%) : 0.10
  • Oxygen Max ppm : 10

Other Details

Width : 140 mm maximum

Thickness : as per customer drawing

ISO 356, JS 2801, BS 1434, IS 4519 or Customers Specification

The Trapezoidal Thickness of the Segment/Bar is within +/- 25 microns in the whole lot and within 20 microns within each box used for packing the Segment/Bar.

A Negative Angle of Departure is always maintained in the Commutator Segments/Bars manufactured by us and the Convexity/Concavity is maintained within +/- 20 microns.

All these strict quality controls ensure faster assembly and superior quality of the Commutator at the customers end.

Width :140 mm max

Thickness : As per Customer Drawing

ISO 356, JS 2801, BS 1434, IS 4519 or Customer Specifications

The Trapezoidal Thickness of the Segment/Bar is within +/- 25 microns in the whole lot and within 20 microns within each box used for packing the Segment/Bar.

A Negative Angle of Departure is always maintained in the Commutator Segments/Bars manufactured by us and the Convexity/Concavity is maintained within +/- 20 microns.

All these strict quality controls ensure faster assembly and superior quality of the Commutator at the customers end.
